eZWalker Review - 3D Visualization Review System

Product Overview

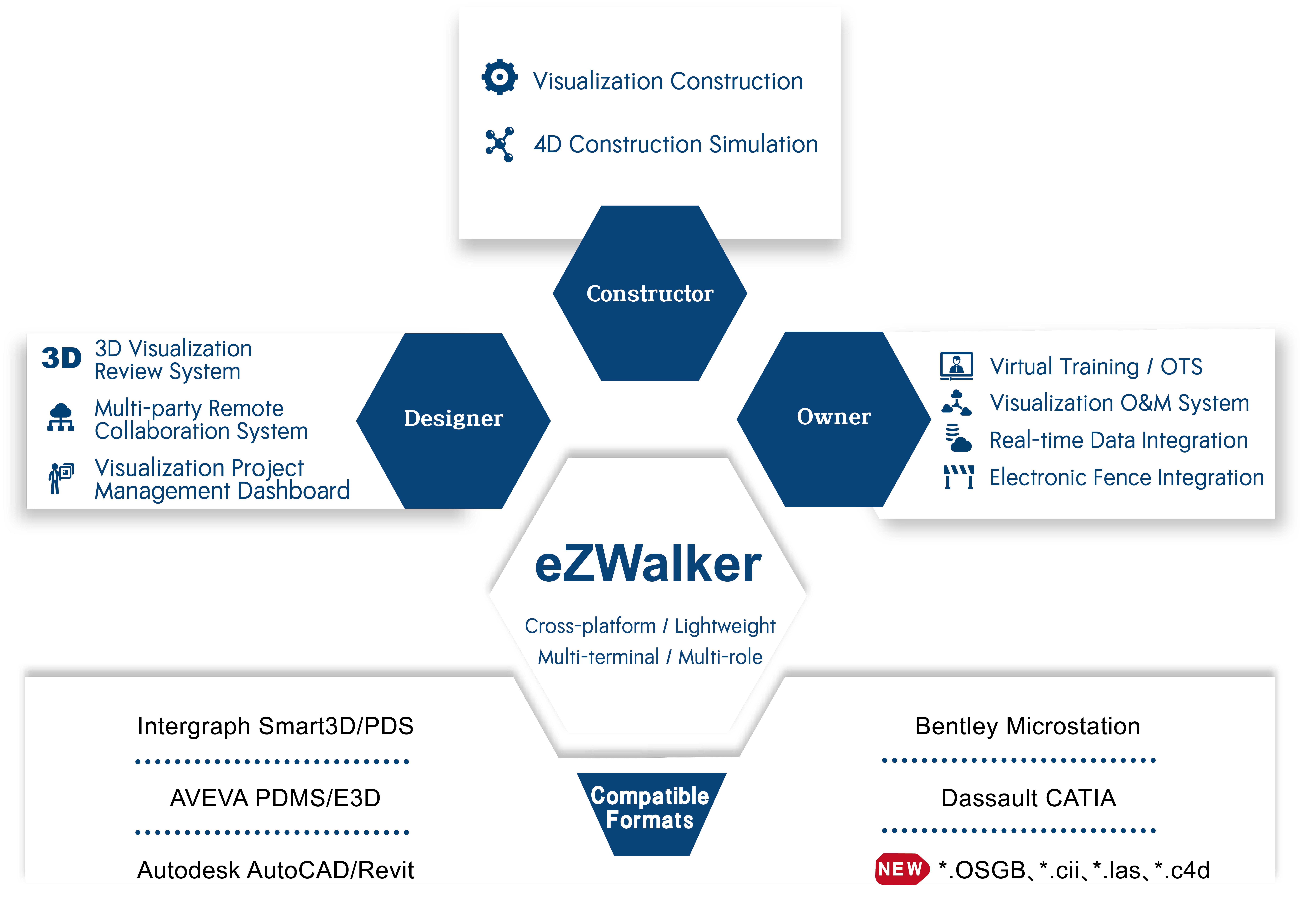

eZWalker Review, the 3D visualization review system, independently developed by DMS, has a embedded XRE rendering core with independent IPR, which can seamlessly analyze various 3D system data of plants (PIM), buildings (BIM), machinery and etc. The extreme lightweight capabilities for engineering models and data can meet various industrial customization purposes such as the visualization project collaboration among the EPC general contractor, 3D review by the designer, construction simulation by the construction unit, visualization operation and maintenance training by the owner, etc., and can meet the platform requirements for the visualization management of the full life cycle of digital assets to help owners achieve the goals of smart manufacturing and industry 4.0. The platform supports multi-screen integration and multi-terminal access. The PC terminal and mobile APP can use the powerful rendering engine algorithm of the terminal program to realize functionalities such as large-scale scene browsing, multi-person conference collaboration, and ergonomics inspection. At the same time, it can realize the synchronization of cloud data with PIMCenter, the full life cycle information management platform for plant assets, which is also independently developed by DMS.

Independent Lightweight Technology

· The installation package of eZWalker Review is only a little over a hundred megabytes in size, making it compact and lightweight compared to other browser software that often exceeds gigabytes;

· The model lightweighting technology enables highly compressed processing of the original model files, achieving a compression ratio of up to 70 times while retaining the integrity of the original data;

· During the model browsing process, users have the flexibility to adjust the browsing precision according to their needs, enhancing compatibility with older devices.

Supports parsing various formats with an independent core industrial-grade engine

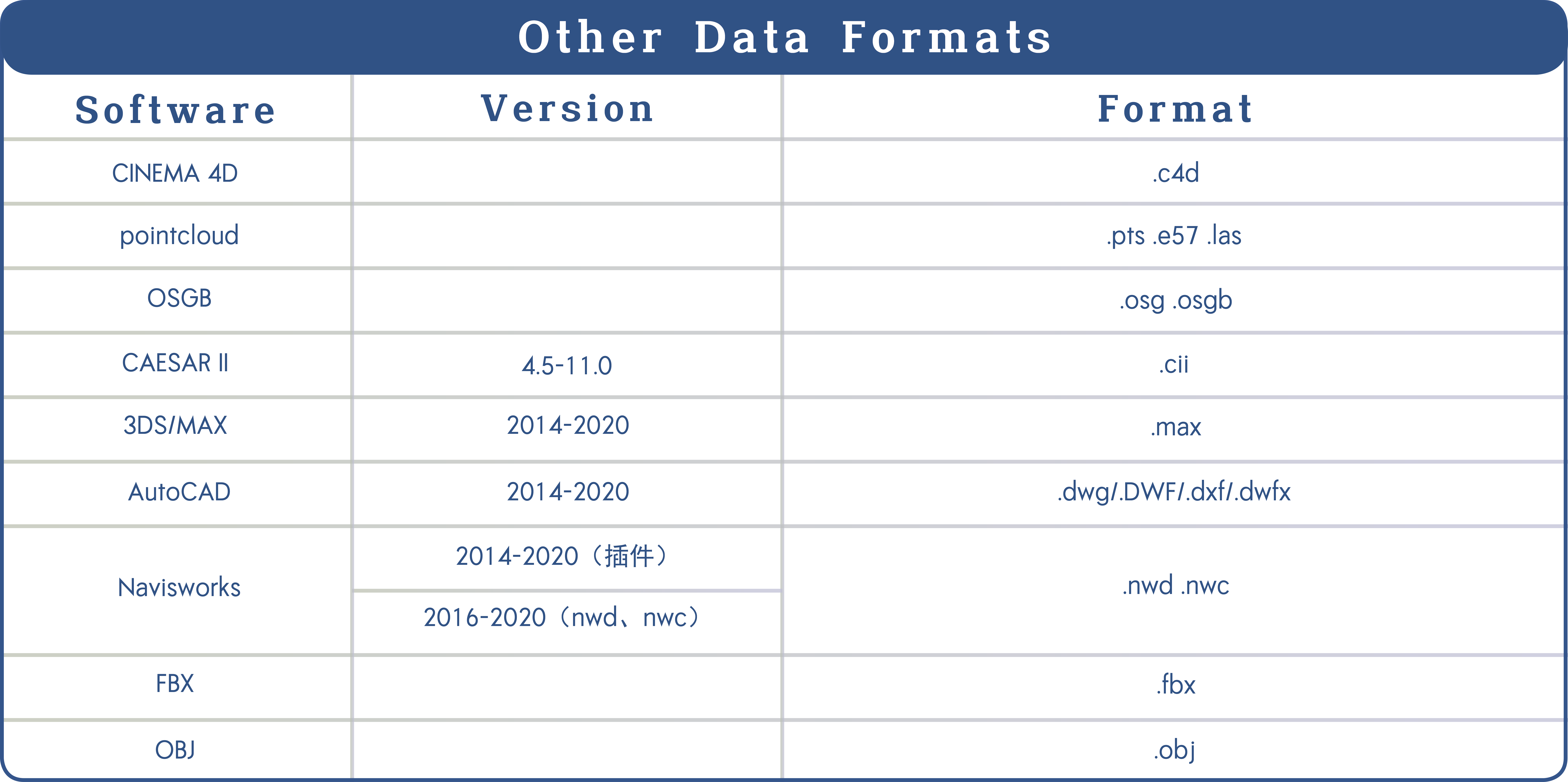

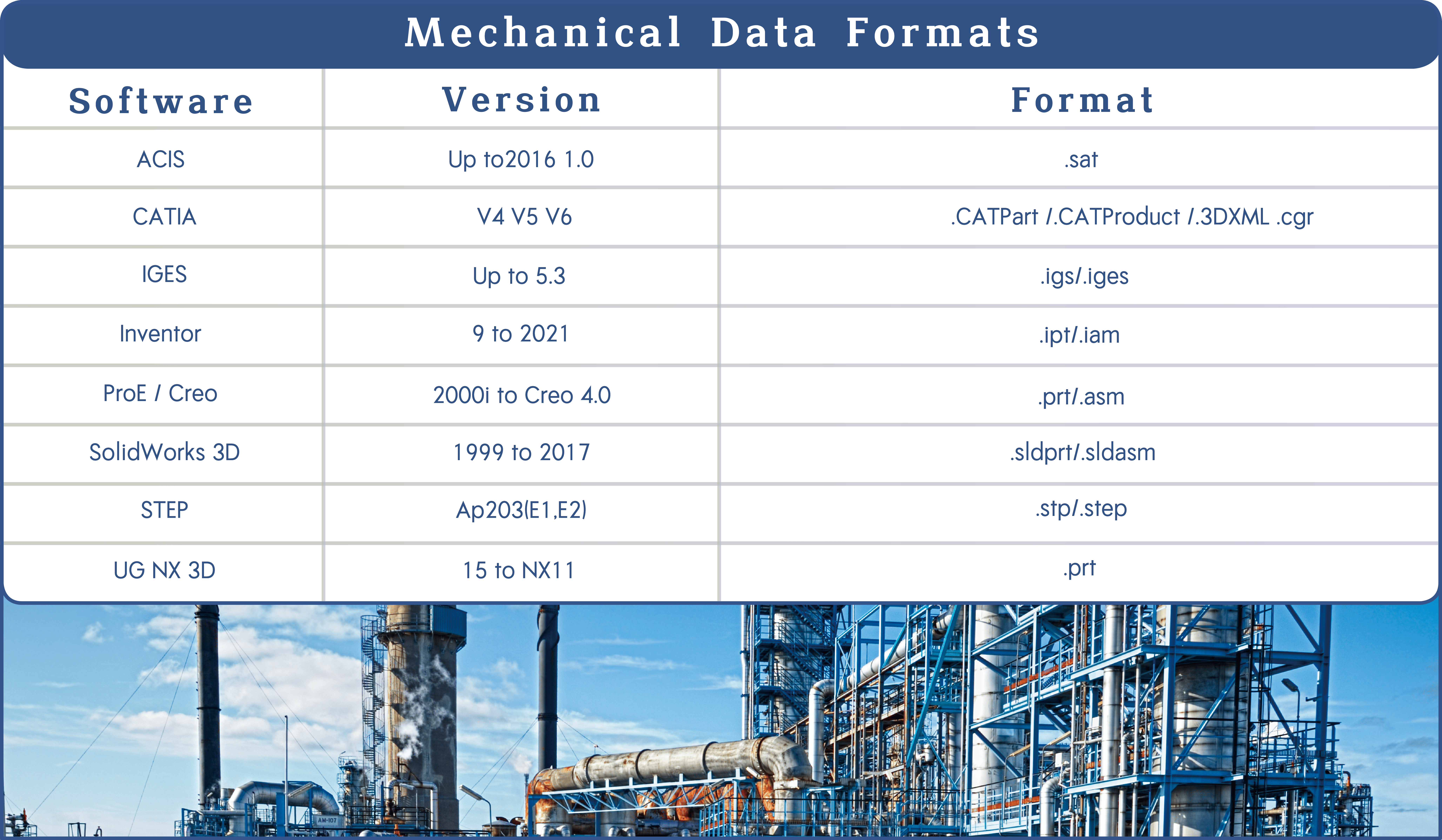

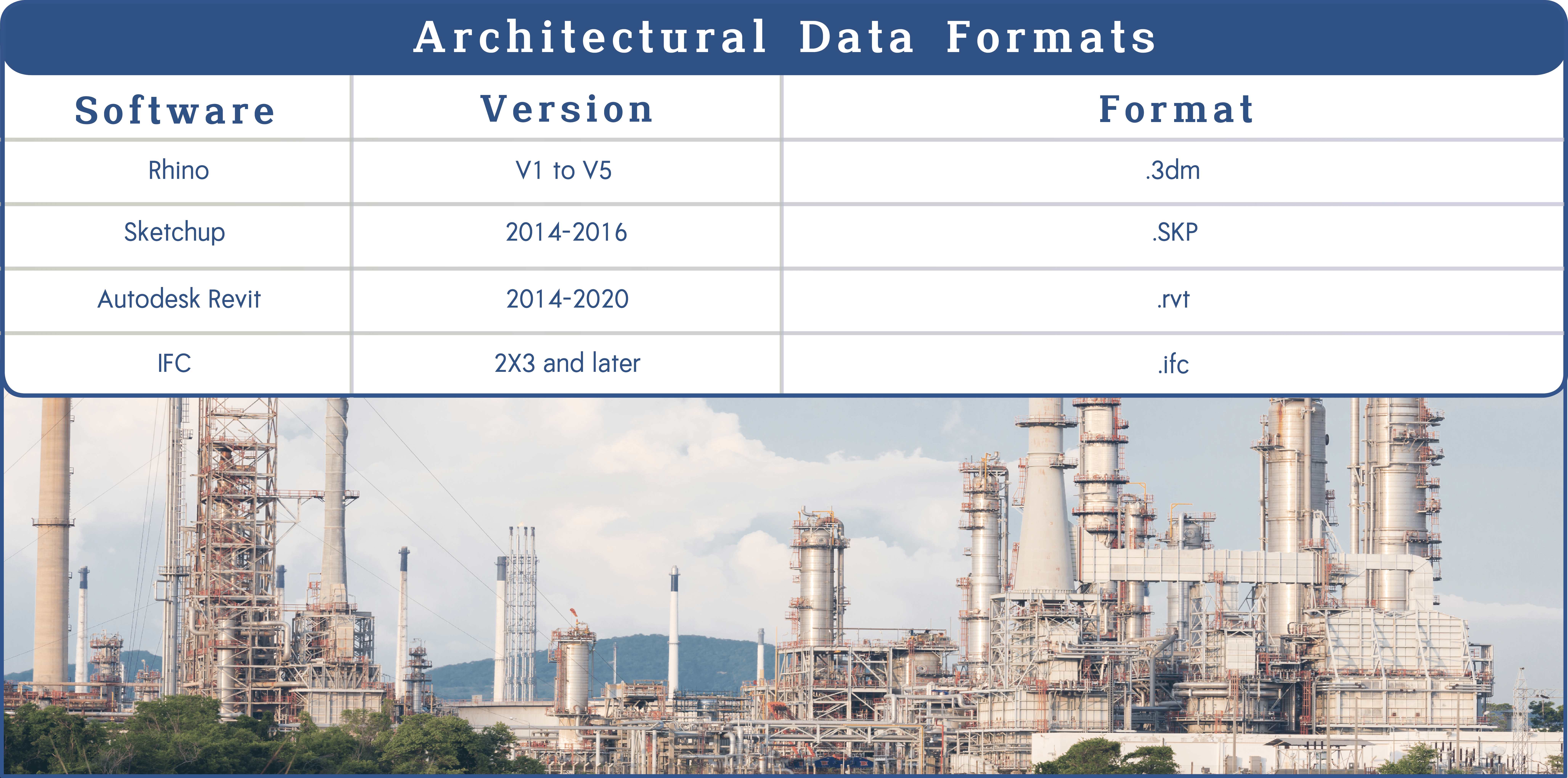

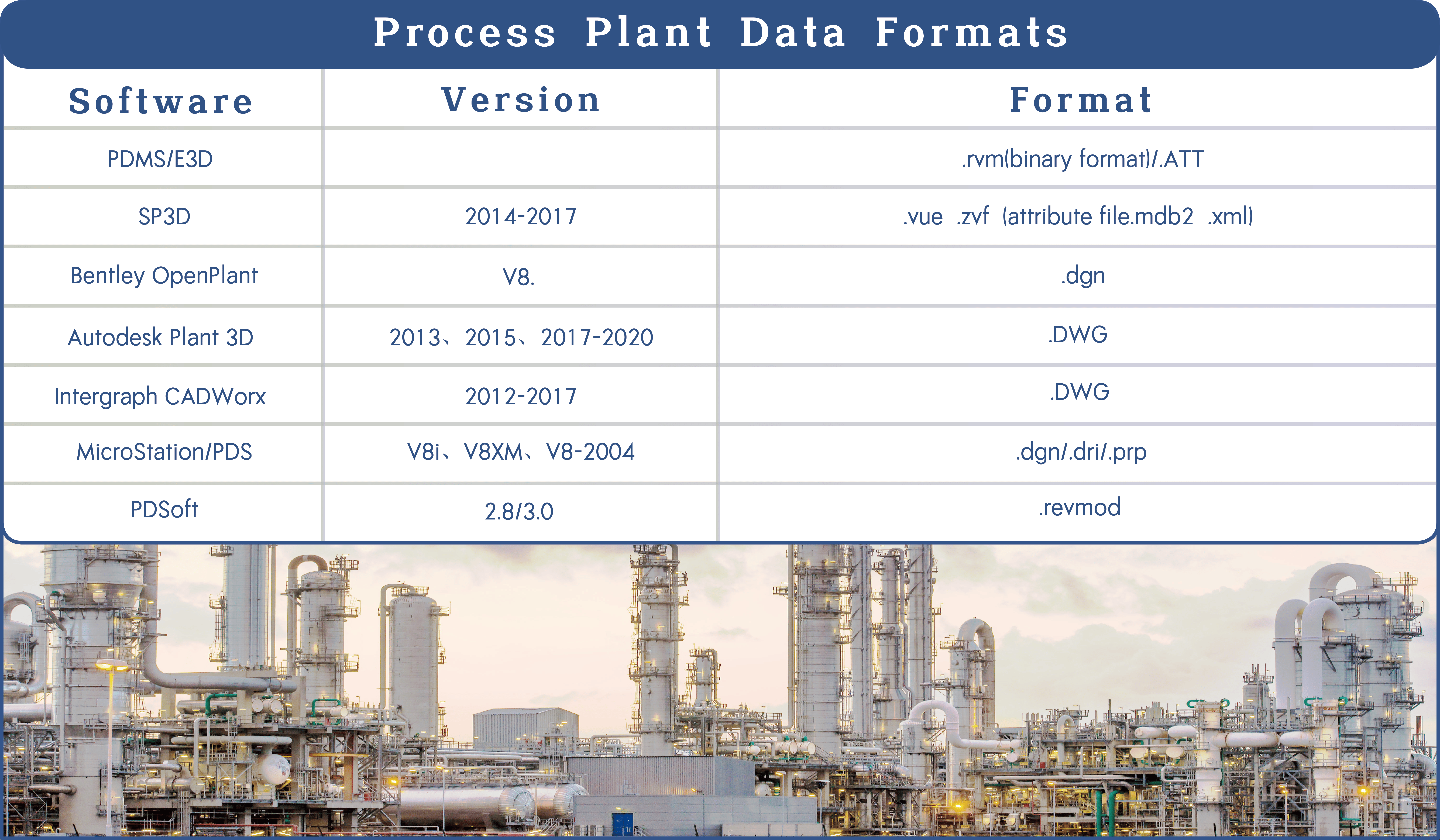

· eZWalker Review supports multiple mainstream 3D design software formats commonly used in industries such as plants, construction, and machinery. It incorporates a embedded independent core engine and can also load attribute information for objects;

· Entertainment-grade engines like Unity 3D/UE4 primarily focus on showcasing 3D visual effects and may overlook the attribute information required for projects;

· The industrial-grade engine has better performance in the displaying efficiency of partially dense large models, the integrity of engineering data inheritance, data security and stability.

Powerful and User-friendly Model Review Functionality

Through independently developed efficient model review features, it enables users to navigate, review, conduct collaborative remote meetings, collision checks, animation creation, VR roaming, and other operations on commonly used 3D models in industries such as process plants, construction, and machinery.

Obtaining the Original Directory Tree and its Attributes

The models files parsed by eZWalker Review retain the original 3D model's directory structure and attribute information. It also supports the customization of additional extended property information, providing an information foundation for later model and data utilization.

Model Synchronization and Comparison

Through the same client end, using two different eZWalker windows (just utilizing a single license), you can achieve a comparison between different versions of the model. This facilitates the comparison between the model before and after changes, aiding in tracking the process of problem resolution.

Quick Operations on Model

During the model roaming and browsing process, you can perform various operations such as making the model transparent, hiding components, changing colors, conducting local or global sectioning, and taking measurements, etc.

Accurate Measurement

It supports capturing model feature points and lines, allowing for precise measurements of dimensions and angles. It provides dynamic prompts for point coordinates and distances along the three axes directions.

Advanced Search

It enables quickly searching for model nodes with specific attributes, swiftly pinpointing the position of the identified node using search results, and performing actions such as color changes, hiding, or reverse selection on the search results.

Touch Browsing Mode with Large Screen

Browsing models through touchscreen operations enhances efficiency, simplifies interactions, and is suitable for various scenarios such as meetings and exhibitions.

Model Review

· During the review process, various annotation methods are supported for identifying and commenting on issues, facilitating the addition of review comments;

· The review results support multiple output and transfer methods, and can be exported as customized template Excel review reports;

· Import/Export XML for general review data files, compatible with viewing and reviewing data in Navisworks.

· It supports remote collaborative review among multiple users, enabling model sharing, file sharing, and viewpoint sharing, thereby enhancing the efficiency of the review process.

Interdisciplinary Collision Detection

By using a 3D model to set up inspection rules for various objects such as pipelines, equipment, and building structures, collision checks can be performed. This allows for the early detection of inconsistencies in the model before construction, facilitating timely adjustments or discussions for optimal solutions. It reduces the occurrence of errors, omissions, collisions, deficiencies, and other issues associated with traditional 2D modes, thereby improving construction efficiency, quality, and shortening the project duration.

Perspective Synchronization of Design Software

After completing the model review using eZWalker, the "Camera Sync" feature enables perspective synchronization between eZWalker and SP3D or PDMS design software. This allows for quickly locating the position of the reviewed issues in the design software, significantly enhancing the efficiency of model modifications.

Ergonomics

The embedded ergonomic inspection module compliant with international standards, accurately simulating on-site operations. Supports the addition of 22 international standard ergonomic inspection models, allowing for the early detection of potential on-site issues and reducing production costs.

Space Identification

It supports spatial identification within 3D space, such as range indication, route guidance, widely applied in 3D scenarios for safety warnings, inspection and evacuation routes, piping medium flow direction, text labeling, etc. Additionally, it supports dynamic cyclic display, enhancing the reminder effect.

Parameter-driven Script Animation

With regard to dynamic display effects for models, it supports intelligent parameter-driven animation creation functionality. It features flexible equipment joints, allowing the addition of trajectory paths, color transitions, transparency, and various temporal dynamic model effects.

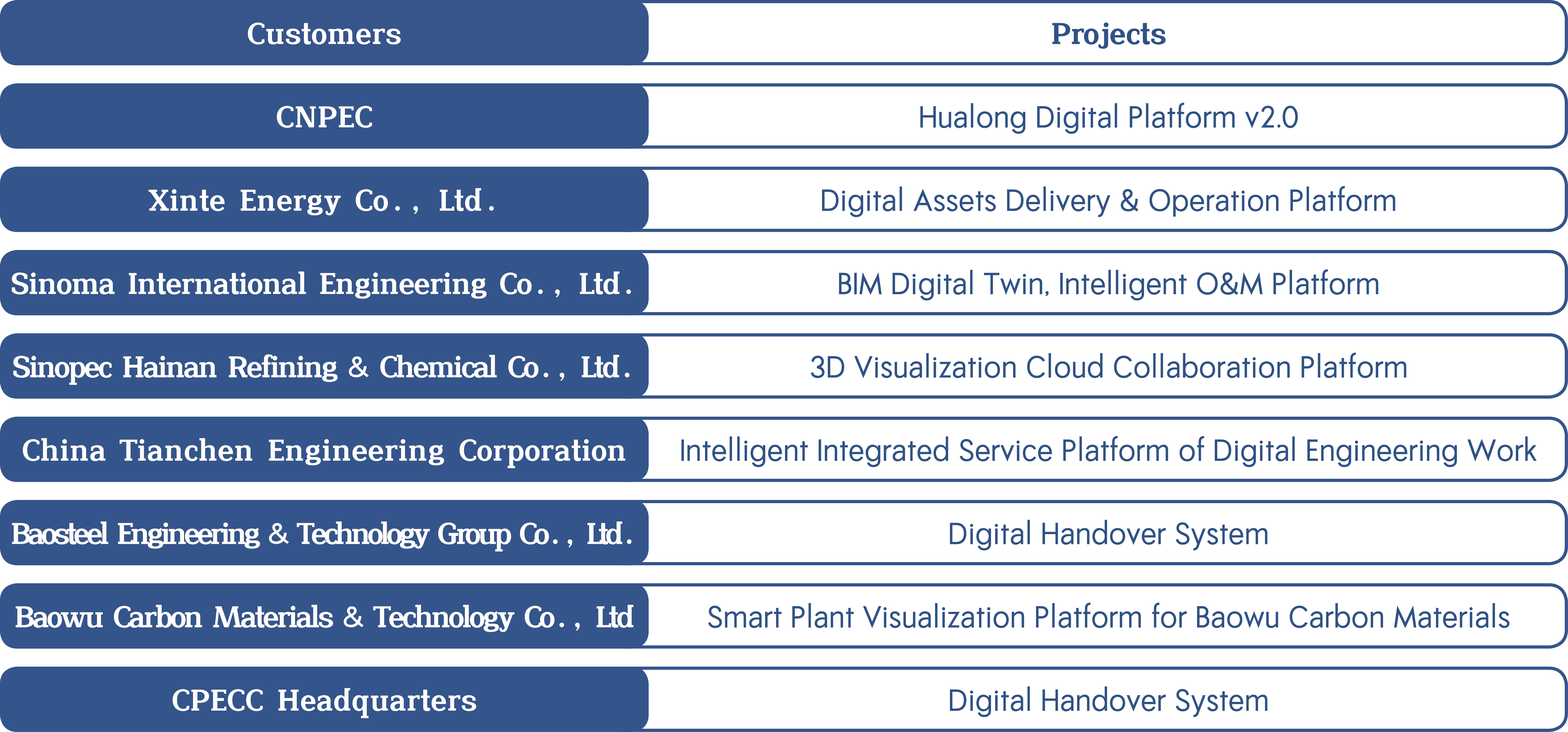

Application Case

Using eZWalker Review as the platform for model analysis, lightweight publishing, and display, establishing a visualization portal centered around 3D data, providing a dedicated space for 3D digital assets.

	CBMI Use the measurement function to check whether the pipeline meets the regulations; use the mobile terminal to view the model on site and compare the situation on site.
	Hualu Engineering Use the 3D review function at the model review meeting to record model errors; use the reviewed record export function to transfer review records.
	Sinopec Engineering Incorporation Realize multi-party remote meeting review, the experience is as simple and practical as a game.
	Shengli Design Institute Use VR function for staff training; Use the model conversion function to import models in other formats into 3DS MAX for beautification.
	Bohai Chemical Industry Use the lightweight model to integrate the model, and use VR to browse and view the model.
	Hainan Refinery Use the model lightweight and merge function to integrate the 3D data provided by various design institutes for roaming browsing and some applications later.
	Wanhua Chemistry Use model conversion and lightweight integration of model data in different formats, and use domain browsing to view and display.
	Tarim Oilfield of CNPC Use model merging to combine design data from multiple sources for model review and employee learning.
	Southwest Oilfield of CNPC Lightweight processing of 3D models, combined with the PIMCenter product line, enables visualized management of assets.
